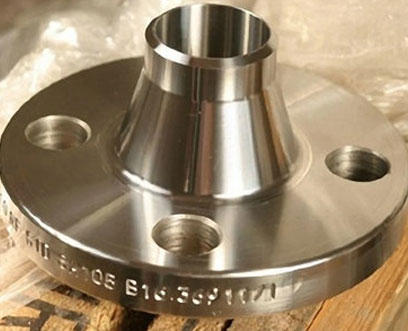

ASTM A182 Stainless Steel Flanges Manufacturer in India

Manufacturer of SS Pipe Flange, Stainless Steel Forged Flanges in India

Stainless Steel Flanges are made up of different stainless steel types. Steel India Company is a leading manufacturer and supplier of the stainless steel flanges in various grades, types, pressure classes and dimensions. As a leading Stainless Steel Flanges manufacturer we produce flanges ranging from ½ inches to 48 inches in nominal bore sizes. There are different specifications such as the ASTM A182 specification which covers high pressure and high temperature applications such as the boilers. The Stainless Steel Slip On Flanges are one of the functional types which allow pipes to slip on for better connection of the flanges.

The slip on flanges are mostly used with seamless pipes in most applications which require high precision. The Stainless Steel Pipe Flanges can come in 304, 316 grades of stainless steels. These are the most used of the stainless steel grades. There are also the special types of the flanges such as the Stainless Steel Blind Flanges which are used to close a pipe. The blind flange is connected at the end of the pipe to close it with welding or bolting. There are different types of blind flanges such as the butterfly flange as well. The types can also vary as forged, flat face, raised face, ring type joint and SS Plate Flanges. We produce the flanges in all different types, grades and dimensions to suit different applications as a SS flange manufacturer. The applications include oil and gas industries, offshore oil industries, chemical industries, petrochemical industries, pharmaceuticals and general corrosive service pipe lines. Please feel free to contact us for more information on the ASTM A182 Flanges and the prices.

Buy from Stainless Steel Flanges, ASTM A182 Stainless Steel Flanges manufacturer in Mumbai, Check Stainless Steel Class 150 Flanges Dimension

SS Pipe Flange Specification Chart

Specifications ASTM A182 / ASME SA182
Martensitic Stainless Steel Flange Standard EN
  • 6Bar 10Bar 16Bar 25Bar 40Bar
SS Flanges Standard DIN
  • 6Bar 10Bar 16Bar 25Bar 40Bar
  • PN6 PN10 PN16 PN25 PN40, PN64
Chromium Stainless Steel Flanges Standard JIS
  • 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Austenitic SS Flanges Standards
  • ANSI/ ASME
  • B16.5
  • B16.47 Series A & B
  • B16.48, BS4504
  • BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
Ferritic Stainless Steel Flanges Standard ANSI
  • Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
SS Flanges Standard UNI
  • 6Bar 10Bar 16Bar 25Bar 40Bar
ASME B16.5 Stainless steel Flange size range 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Chromium Nickel Stainless Steel Flange supporting material Gasket, Ring Joint, Flange Bolts
Austenitic and Ferritic Stainless Steel Flanges Production technique
  • Forged, Heat treated and machined
Manufacturer of Stainless steel Forged / Threaded / Screwed / Plate Flange
Austenitic Chromium Nickel SS Flange Test X-ray detector, Direct-reading Spectrograph, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector
Equipment for ASTM A182 SS Flange Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Stainless Steel Flanges Dimensions & Welded Stainless Steel Pipe Flanges Price List, Buy 150 psi Large Diameter Stainless Steel Flanges at low cost

SS Pipe Flange Price List

DN CAT Description PRICE IN US($)
250*40 ELBOW 90 DEG 90° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $6
250*40 ELBOW 20 DEG 20° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $10.20
250*40 ELBOW 45 DEG 45° Elbow, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $10.40
250*40 ELBOW 45 DEG 45° Elbow, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $16.05
250*40 ELBOW 90 DEG 90° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $18.10
250*40 ELBOW 90 DEG 90° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $16.10
250*40 ELBOW 90 DEG 90° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $26.20
250*40 ELBOW 90 DEG 90° Elbow, SR, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $1.90
40*15/ 80 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $8.85
50*25/ 40 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $4.90
50*32/ 40 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $32.77
50*40/ 40 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $16.95
65*25/ 40 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $2.30
80*40 CONCENTRIC REDUCER Concentric Reducer, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $14.25
15*10s EQUAL TEE EQUAL TEE, BW, Stainless Steel, ASTM A403, ANSI/ ASME B16.9  $2.30

Different ASTM A182 Stainless Steel Flanges Types

Stainless Steel Blind Flanges

Stainless Steel Blind Flanges

Stainless Steel Threaded Flanges

Stainless Steel Threaded Flanges

Stainless Steel Socket Weld Flanges

Stainless Steel Socket Weld Flanges

Stainless Steel Welding Neck Flanges

Stainless Steel Welding Neck Flanges

Stainless Steel Plate Flanges

Stainless Steel Plate Flanges

Stainless Steel Slip On Flanges

Stainless Steel Slip On Flanges

Stainless Steel Blank Flanges

Stainless Steel Blank Flanges

Stainless Steel ANSI 150 Flanges

Stainless Steel ANSI 150 Flanges

Stainless Steel Reducing Flanges

Stainless Steel Reducing Flanges

Stainless Steel Class 150 Flanges Weight Chart

Standard
Class
Diameter
Bolt Circle Diameter
Number of Bolts
Bolt Size
Diameter of Bolt Hole
AS4087 Flanges
PN14 Flanges
95
67
4
M12
14
AS 2129 Flange
Table C Flanges
95
67
4
13
14
Table D Flanges
95
67
4
13
14
Table E Flanges
95
67
4
13
14
Table F Flanges
95
67
4
13
14
Table H Flanges
114
83
4
16
17
Table J Flanges
114
83
4
16
17
ANSI B16.5 Flanges
ANSI 150 Flanges
89
60
4
13
16
ANSI 300 Flanges
95
67
4
13
16
ANSI 600 Flanges
95
67
4
13
16
ANSI 900 Flanges
121
83
4
19
22
ANSI 1500 Flanges
121
83
4
19
22
ISO 7005 (DIN) Flange
PN6 Flanges
80
55
4
M10
11
PN10 Flanges
95
65
4
M12
14
PN16 Flanges
95
65
4
M12
14
PN20 Flanges
90
60.5
4
M14
16
PN25 Flanges
95
65
4
M12
14
PN40 Flanges
95
65
4
M12
14
Ready Stock of ANSI 150 Stainless Steel Flanges, SS Socket Weld Flange, Stainless Steel Screwed Flanges, View Stainless Steel Split Flanges Weight

Welded Stainless Steel Pipe Flanges Standards

ASME B16.5 Stainless Steel Flanges EN TYPE DIN
WN – Welding Neck EN-TYPE 11 DIN 2631
DIN 2632
DIN 2633
DIN 2634
DIN 2635
BL – Blind EN-TYPE 05 DIN 2527
SO – Slip On EN-TYPE 01/12
LJ – Lap Joint EN-TYPE 02/04 DIN 2641
DIN 2642
DIN 2655
DIN 2656
SW – Socket Weld EN-TYPE 14
THR – Threaded EN-TYPE 13 DIN 2566
LWN – Long Welding Neck / Integral EN-TYPE 21
Welding Collars EN-TYPE 32/34
SS Flat Flange for Welding DIN 2573
DIN 2576
Stainless steel Lap Joint Short Stub End DIN 2673
Chromium Nickel SS Orifice Flanges, Chromium SS Swivel Flanges, Spades, Spacer Rings
Ferritic SS Spectable Blinds, API 6A, JIS B2220, VSM, NFE, BS10/BS4504, GOST

Pressure Rating Of ANSI 150 Stainless Steel Flanges

ASME/ANSI B 16.5 Chromium Nickel SS Welding Neck Flanges, Socket Weld Flanges, Slip on Flanges, Blind Flanges, Lap Joint Flanges, Threaded Flanges, High Hub Blind Flanges, Ring Type Joint Flanges
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.36 Chromium SS Threaded Flanges, Welding Neck Flanges, Slip on Flanges (SORF)
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Ferritic SS Weld Neck Flanges, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1 AusteniticSS Hubbed Threaded Flanges, Welding Neck Flanges, Blank Flanges, Hubbed Slip on Flanges, Lapped Pipe End Flanges, Plate Flanges, Loose Plate Flanges, Loose Plate With Weld Neck Flanges
PRESSURE CLASS PN 2.5 TO PN 40
BS 1560 BOSS Ferritic SS grade Slip-On Flanges, Welding Neck Flanges, Socket Welding Flanges, Blind Flanges, Lapped Flanges, Screwed Boss Flanges
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Austenitic SS grade Blind Flanges, Welding Neck Flanges, Plate Slip-On Flanges, Screwed Boss Flanges, Slip-On Boss Flanges
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673
PRESSURE CLASS PN 6 TO PN 100
BS 4504[PART 1] Stainless Steel Loose Plate With Weld On Plate Collar, Welding Neck Flanges, Hubbed Slip-On Hubbed Threaded, Plate Flanges, Blank Flanges
PRESSURE CLASS PN 2.5 TO PN 400
ASME B16.5 High Pressure Stainless Steel Flanges Manufacturer, Check Forged Stainless Steel Square Flanges, Stainless Steel Exhaust Flanges available size

Equivalent Grades SS Socket Weld Flange

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4301 S30409
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 X8CrNi25-21
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2
SS 317 1.4449 S31700 SUS 317
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9
SS 347 1.4550 S34700 SUS 347 08Ch18N12B X6CrNiNb18-10
SS 410 1.4006 S41000 SUS 410 410S21 X12Cr13
SS 446 1.4762 S44600
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5 Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Forged Stainless Steel Square Flanges Chemical Compatibility

Type C Mn P S Si Cr Ni Mb
302 0.15 2.00 0.045 0.030 1.00 17.00/19.00 8.00/10.00
304* 0.08 2.00 0.045 0.030 1.00 18.00/20.00 8.00/10.50
304L* 0.03 2.00 0.045 0.030 1.00 18.00/20.00 8.00/12.00
309 0.20 2.00 0.045 0.030 1.00 22.00/24.00 12.00/15.00
309S 0.08 2.00 0.045 1.00 22.00/24.00
310 0.25 2.00 0.045 0.030 1.5 24.00/26.00 19.00/22.00
310S 0.08 2.00 0.045 0.030 1.5 24.00/26.00 19.00/22.00
316* 0.08 2.00 0.045 0.030 1.00 16.00/18.00 10.00/14.00 2.00/3.00
316L* 0.03 2.00 0.045 0.030 1.00 16.00/18.00 10.00/14.00 2.00/3.00
317 0.08 2.00 0.045 0.030 1.00/1.00 18.00/20.00 11.00/15.00 3.00/4.00
317L 0.03 2.00 0.045 0.030 0.75 18.00/20.00 11.00/15.00 3.00/4.00
321 0.08 2.00 0.040 0.030 1.00 17.00/19.00 9.00/12.00 0.75/0.75
347 0.08 2.00 0.040 0.030 0.5/1.00 17.00/19.00 9.00/12.00 0.5/0.75

SS Weld Neck flange Mechanical Properties Chart

Type UNS Tensile
(ksi) min
Yield
(ksi) min
Elongation
min
Hardness
(Brinell) max
Hardness
(Rockwell B) max
302 S30200 75 30 40% in 2″ 183 88
304* S30400 75 30 40% in 2″ 183 88
304L* S30403 70 30 40% in 2″ 183 88
309 S30900 75 30 40% in 2″ 217 95
309S S30908 75 30 40% in 2″ 217 95
310 S31000 75 30 40% in 2″ 217 95
310S S31008 75 30 40% in 2″ 217 95
316* S31600 75 30 40% in 2″ 217 95
316L* S31603 70 25 35% in 2″ 217 95
317 S31700 75 30 35% in 2″ 217 95
317L S31703 75 30 35% in 2″ 217 95
321 S32100 75 30 40% in 2″ 183 88
347 S34700 75 30 40% in 2″ 183 88

Special Offer on

Pipe Size - Pipe Flange Flange Connection Type Max. Pressure
1/2" FNPT 150 psi
1/2" Socket Weld 275 psi
1/2" Welded 150 psi
3/4" FNPT 150 psi
3/4" Socket Weld 275 psi
1-1/4" Socket Weld 275 psi
1-1/2" Socket Weld 275 psi
2" FNPT 150 psi
2" Socket Weld 275 psi
2-1/2" Socket Weld 275 psi
3" Socket Weld 275 psi
4" FNPT 150 psi
4" Socket Weld 275 psi
1/2" Slip On 720 psi
1/2" Slip On 720 psi
1" Slip On 720 psi
1" Slip On 720 psi
1-1/4" FNPT 720 psi
1-1/4" Slip On 720 psi
1-1/2" Slip On 720 psi
1-1/2" Slip On 720 psi
2" Slip On 720 psi
2" Slip On 720 psi
2-1/2" Slip On 720 psi
2-1/2" Slip On 720 psi
3" Slip On 720 psi
3" Slip On 720 psi
4" Slip On 720 psi
4" Slip On 720 psi
